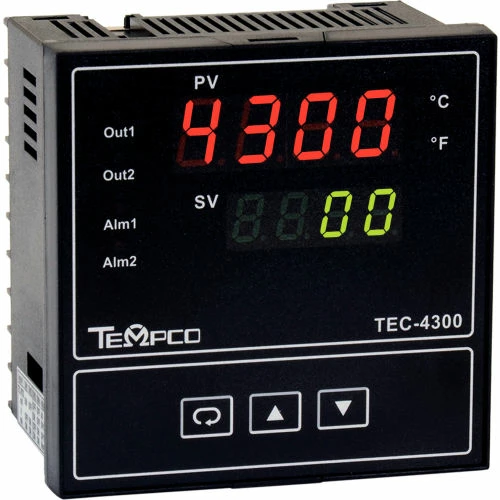

Coupon ⌛ Tempco Temperature Control – 90-264VAC, 1/4Din, SSR/Relay, TEC55018 💯

Features:

• 1/4 DIN size – 96 mm x 96 mm
• Fuzzy Logic PID heat and cool control
• PID Control – Auto-tuning on cold or warm start
• Short panel depth – only 2″ (53 mm) required
• Universal programmable sensor input
• Heater Break Alarm using 0-50 Amp current transformer
• Output 2 can be programmed as cooling output only
• 2 optional alarms – programmable NO or NC relay
• Wide variety of alarm mode selections
• Bumpless transfer to manual mode during sensor failure
• Universal input power, 90-264 VAC or 11-26 VAC/VDC
• RS-485 and RS-232 data communications interface
• Bright 0.55″ (14 mm) red LED process display
• 0.40″ (10 mm) green LED setpoint display
• Fast input sample rate (5 samples/second)
• Differential control
• “Soft-Start” ramp and dwell timer
• Analog input for remote setpoint and current transformer
• Event input for changing functions and setpoint
• Hardware lockout plus remote lockout protection
• Loop break alarm
• Analog retransmission
• DC power supply outputs
