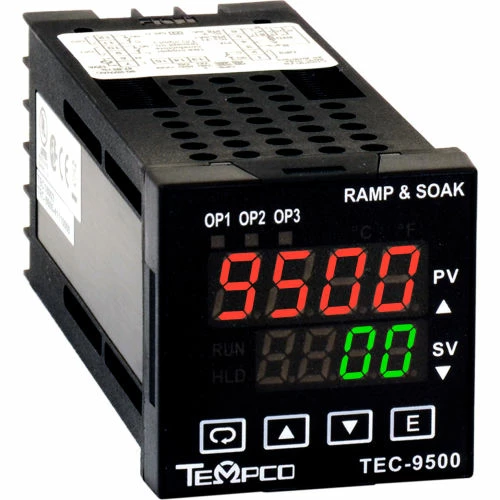

Best Sale ⌛ Tempco Temperature Control – 90-250VAC, 1/16Din, (2) 2ARelay, TEC18002 😍

Features:

• Ramp & Soak Programmable Control
• Nine recipes (profiles) available using 64 segments maximum per recipe
• Each recipe can be divided into 3 lengths: 16, 32 or 64 segments
• Event Input – one of 8 functions can be chosen: start run mode, hold mode, abort recipe, manual mode, failure transfer, turn off, segment advance, select 2nd set of PID parameters
• Event Output – 3 relays are available. Can be programmed to any segment or end of recipe
• Analog Retransmission – optional mA or VDC transfer of PV or SV values
• Highly accurate universal input with 18 bit analog to digital converter
• Bright 0.40″ (10mm) red LED process display
• Fast sample rate – 200ms
• Fuzzy logic autotune PID – 2 sets of values can be used
• Optional RS-485 or RS-232 communications interface
• Programming port available for PC connection allowing quick set-up
• Lockout protection guards against unauthorized setting changes
• Bumpless transfer allows continued temperature setting if sensor fails
• Universal input power – 90-250 VAC or 11-26 VAC/VDC
• Short panel depth required
