Brand new 🎁 Supco RSS495011 Adjustable Air Press Sensing Switch 0.25 To 1.0 Pressure Range 120V to 277V ❤️

Original price was: $41.95.Current price is: $29.37.

SKU: Supco WBB1642405 Categories: HVAC Controls, Pressure Controls & Switches Tags: (3) male quick-connect spade terminals, 90°, in compliance with NEMA standa, 0.25 To 1.0 psi, 100,000 cycles minimum at 1 psi maximum pressure, 120 to 277 V, HVAC & Fans, HVAC/R - Appliance, SPDT, Supco

100% Quality Promise
Your questions, our prompt answers.
Peace of Mind with Every Purchase
Buy quality, buy with us.

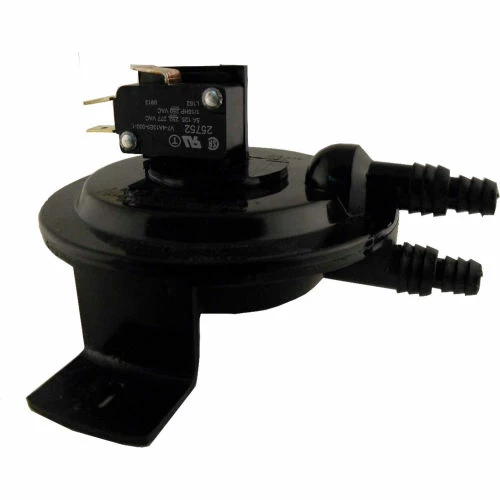

Supco RSS495011 Adjustable Air Press Sensing Switch 0.25 To 1.0 Pressure Range 120V to 277V

Adjustable air pressure sensing switch kit ideal for residential and light commercial furnace, electric air cleaner and humidifier applications.

Features:

Adjustable set points
Operating temperature range: -40°FF to 190°FF
Factory set to activate on pressure rise
SPDT
UL® & CSA Approved

Weight	0.14 lbs
Package Quantity	1
Warranty	2 yr
Brand	Supco
Max Pressure	1 psi (0.06 bar) psi
Sample Line Connectors	Barbed fittings will accept 1/4" ID or 3/8" ID flexible, slip-on tubing
Electrical Ratings	5 amp noninductive 120 to 277 VAC 1 amp pilot duty (120 Va) at 120 VAC
Temperature Operating Range	40 to 190 °F
Manufacturers Part Number	RSS495011
Max Operating Pressure	1 psi
Description	Adjust Air Press Sensing Switch
Measured Media	Air or combustion by-products that will not degrade Polyisoprene and Thermoplast
Field Adjustable Set Point Range	0.20 (+/-)0.05" w.c. to 1.0 (+/-) 0.05" w.c.
Expected Relay Life	100,000 cycles minimum at 1 psi maximum pressure
Switch Type	SPDT
Pressure Range	0.25 To 1.0 psi
Electrical Connections	(3) male quick-connect spade terminals, 90°, in compliance with NEMA standa
For Use With	HVAC/R – Appliance
Power Supply Voltage	120 to 277 V
Width	4 in
Depth	2-1/4 in
Setpoint Range	.25" To 1"
Certifications	UL, CUL, CSA, CE, Australian Gas Association
