Budget 🥰 PECO Industrial Coiled Temperature Controller TF115-023 Temp. Range -30°-100°F w/ Nema 4X 👍

Original price was: $73.95.Current price is: $51.77.

100% Quality Promise

Your questions, our prompt answers.

Peace of Mind with Every Purchase

Buy quality, buy with us.

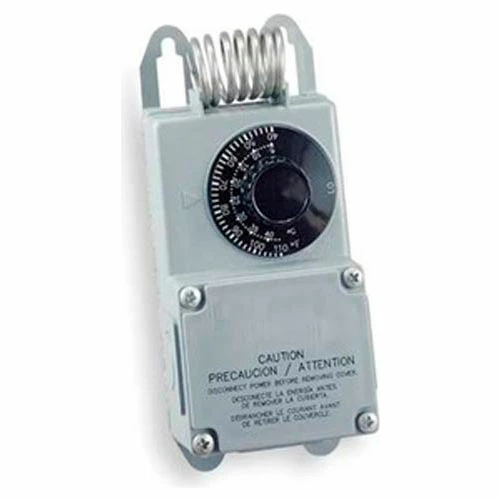

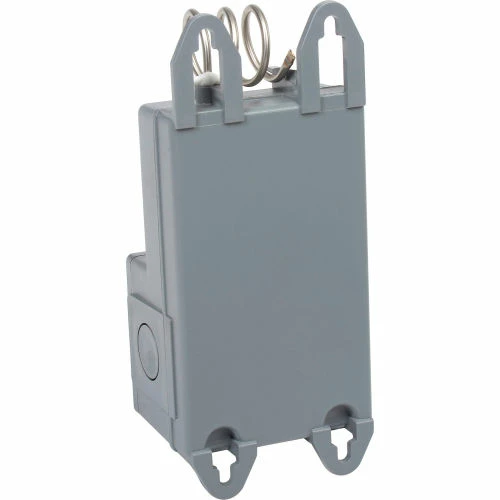

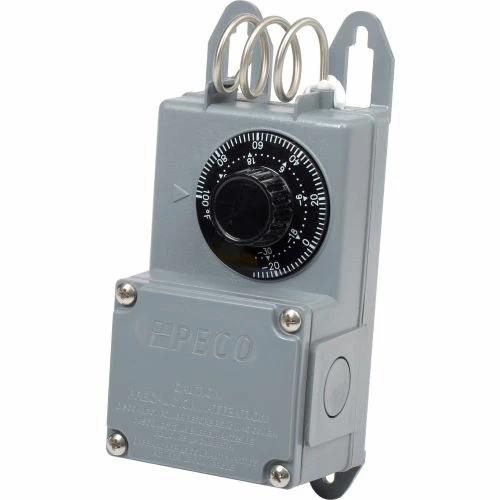

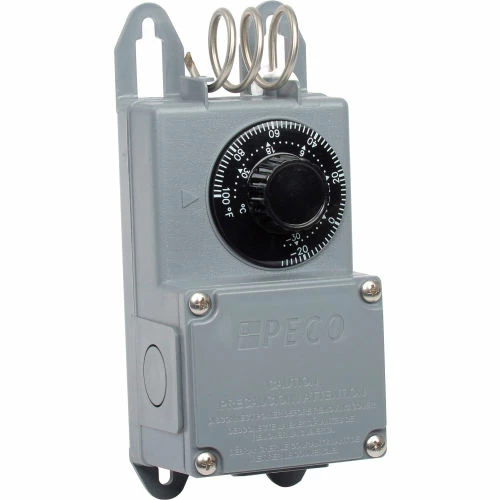

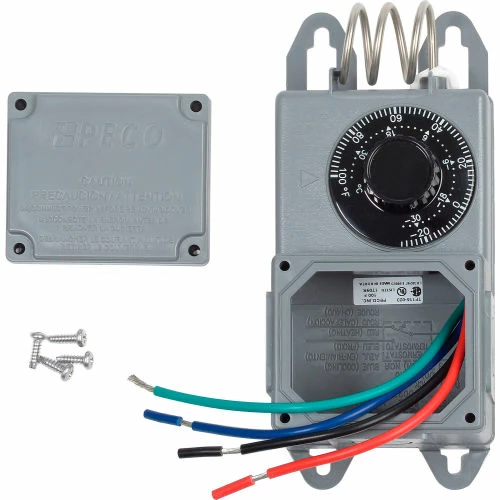

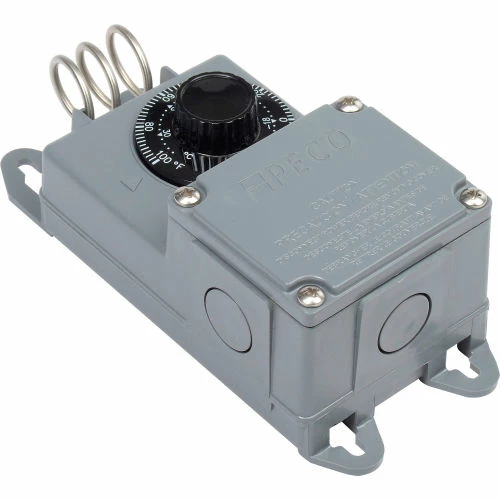

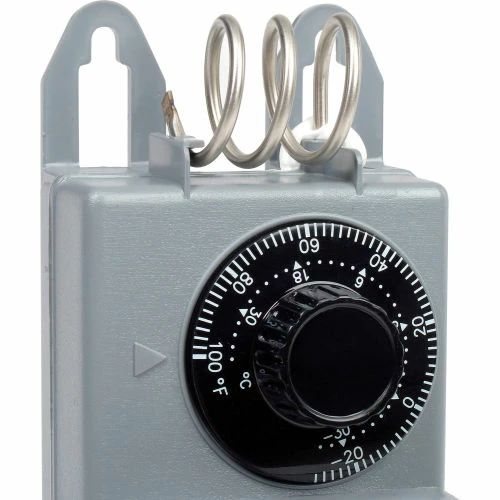

PECO Industrial Coiled Temperature Controller TF115-023 Temperature Range -30°-100°F with Nema 4X Enclosure

Features:

T115 thermostat offers one control for Heating or Cooling
Its NEMA 4X Enclosure Complies with N.E.C. Article 547
The low mass, high surface area of stainless steel coiled sensor provides rapid response to temperature change
Featuring SPDT switches it delivers reliable temperature control for industrial, commercial, and agricultural applications
1 Heat, 1 Cool Stage
1 Year Warranty

Physical Dimensions	3.1"W x 6.5"H x 2.5"D
Switch Action	SPDT
NEMA Rating	4X
Warranty	1 yr
Brand	Peco
Temperature Operating Range	-30 to 100 °F
Manufacturers Part Number	TF115-023
Bulb	Coiled Air – Stainless
Voltage	277 / 240 / 208 / 120 / 24 V
Amps @ 277V	110 AMP FLA; 50A LRA; 22 AMP Non-Inductive; 125 VA Pilot Duty A
Amps @ 208V	13.2 AMP FLA; 66A LRA; 25 AMP Non-Inductive; 125 VA Pilot Duty A
Capillary Length	Coiled Capillary ft
For Use With	Refrigeration / Industrial / Agricultural
Amps @ 240V	12 AMP FLA; 60A LRA; 25 AMP Non-Inductive; 125 VA Pilot Duty A
Power Type	Hardwired
Amps @ 120V	16 AMP FLA; 80A LRA; 25 AMP Non-Inductive; 125 VA Pilot Duty A
Stages	Single
Type	Mechanical
Differential Temperature	6 °F
Temperature Control Range	30 to 100 °F
Certifications	UL, CSA
