Outlet 🔔 Lux Products LUX Line Voltage Mechanical Thermostat LV21 – 1 Stage Heat Only, Single or Double Pole 120/240 VAC – Pkg Qty 10 🎁

Original price was: $369.50.Current price is: $91.99.

SKU: Lux Products WBB2257139 Categories: HVAC Controls, Thermostats, Thermostats Tags: 1H, 22 A, 41 to 90 °F, 50/60 Hz, HVAC & Fans, Line-1, Load-1, Line-2, Load-2, Lux Products, White

100% Quality Promise
Your questions, our prompt answers.
Peace of Mind with Every Purchase
Buy quality, buy with us.

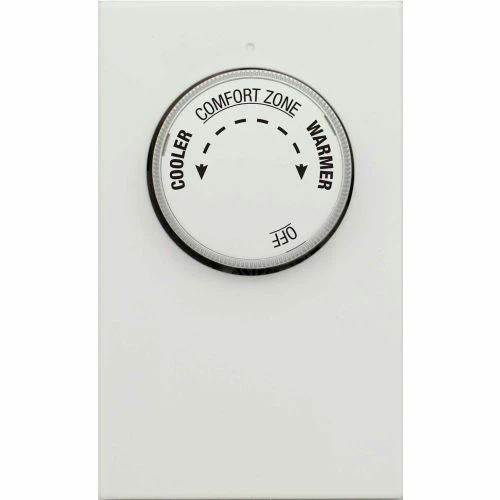

LUX Line Voltage Mechanical Thermostat LV21 – 1 Stage Heat Only, Single or Double Pole 120/240 VAC

Heat-only double-pole line-voltage mechanical thermostat. Easy to install and use with clean attractive design. Contains no mercury. Single bi-metallic temperature sensing strip. Compatible with 1-stage heat only: double or single-pole (4 or 2 wires) and 120/240 VAC systems up to 22 amps. Not compatible with conventional 24V heating, millivolt heating and cooling applications. 5 Year limited warranty.

Weight	0.6 lbs
Mounting Location	Vertical
Warranty	5 yr
Brand	Lux Products
Programmable	Mechanical
Operating Humidity Range	20 to 90 (non condensing)
Manufacturers Part Number	LV21-005
Description	Thermostat
Voltage	240 / 208 / 120 V
Electrical Connections	Line-1, Load-1, Line-2, Load-2
Height	4-1/2 in
Hertz	50 / 60 Hz
Amperage	22 A
Color Family	White
Stages	1H
Temperature Control Range	41 to 90 °F
Width	2-3/4 in
Depth	1-1/2 in
Certifications	ETL
