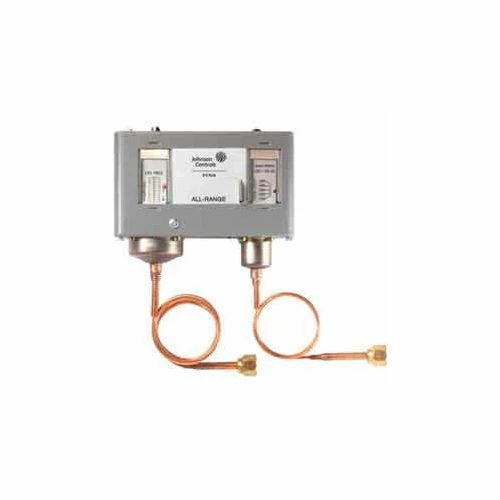

P70NA-1C Single Pole Dual Pressure All Range Control

This P70 Series of dual pressure controls employs a SPST switch, that is opened when either high pressure or low pressure beyond the control settings is sensed at the controls two bellows sensing elements. The load carrying contacts provide direct control of AC motors within the control’s rating. These controls provide close high-open low (low pressure) or open high-close low (high pressure) contact action.

Capillary Length	3 ft
Low Pressure Differential PSIG (KPA)	Lockout (Requires Manual Reset)
Low Pressure PSIG (KPA)	20 in. to 100 (-68 to 690)
Pressure Connector	1/4 in. Flare Nut
Max Overpressure PSIG (KPA)	325 Low, 525 High (2241 Low, 3620 High)
Switch Action	SPST
High Pressure PSIG (KPA)	100 to 500 (690 to 3447)
High Pressure Differential PSIG (KPA)	Lockout (Requires Manual Reset)
Brand	Johnson Controls
Warranty	1 yr
