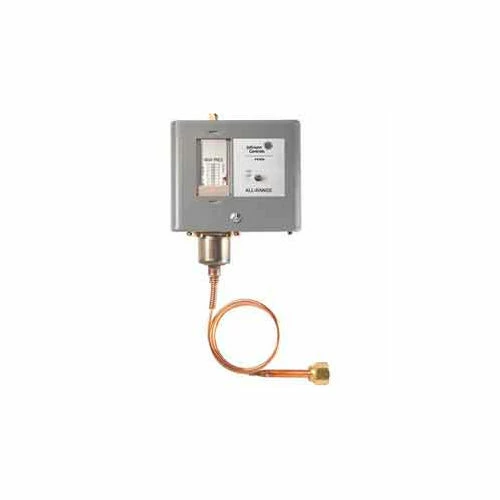

P70LA-2C Single Pole Dual Pressure Control for Ammonia

This P70 Series of dual pressure controls employs a SPST switch, that is opened when either high pressure or low pressure beyond the control settings is sensed at the controls two bellows sensing elements. The load carrying contacts provide direct control of AC motors within the control’s rating. These controls provide close high-open low (low pressure) or open high-close low (high pressure) contact action.

Low Pressure Differential PSIG (KPA)	Min. 7 (48) Max 50 (345)
Low Pressure PSIG (KPA)	20 in. to 100 (-68 to 690)
Pressure Connector	1/4 in. Female NPT Connector
Max Overpressure PSIG (KPA)	325 Low, 525 High (2241 Low, 3620 High)
Switch Action	SPST
High Pressure PSIG (KPA)	100 to 500 (690 to 3447)
High Pressure Differential PSIG (KPA)	65 psi < 300 psig, 75 psi 300-400 psig, 95 psi > 400 psig
Brand	Johnson Controls
Warranty	1 yr
