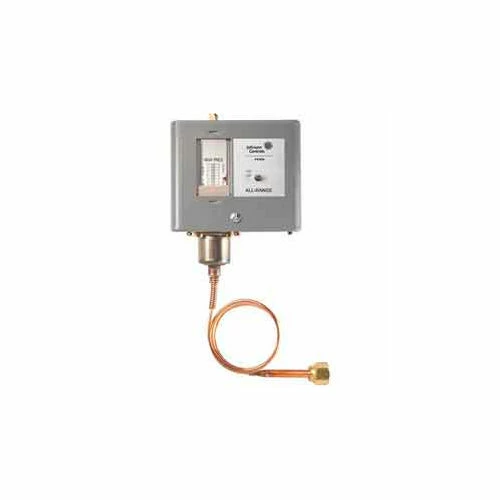

P70EA-14C Single Pole Low Pressure All Range Control

This P70 Series of controls employs a set of switch contacts that are opened and closed by the movement of pressure actuated bellows. The load-carrying contacts provide direct control of AC motors within the control rating. Note the electrical rating chart for specific models. These controls are available with either close high-open low, open high-close low, or SPDT contact action.

Capillary Length	3 ft
PSIG (kPa) Range	12 in. HG Vacuum to 80 (-41 to 551)
Differential PSI (KPA)	Minimum 5 (34) Maximum 35 (241)
Pressure Connector	1/4 in. Flare Nut
Max Operating Pressure	80 psig (551 kPa) psi
Max Overpressure PSIG (KPA)	525 psig (3617 kPa)
Switch Action	SPDT – 1 to 3 Open Low, 1 to 2 Close Low
Brand	Johnson Controls
Warranty	1 yr
