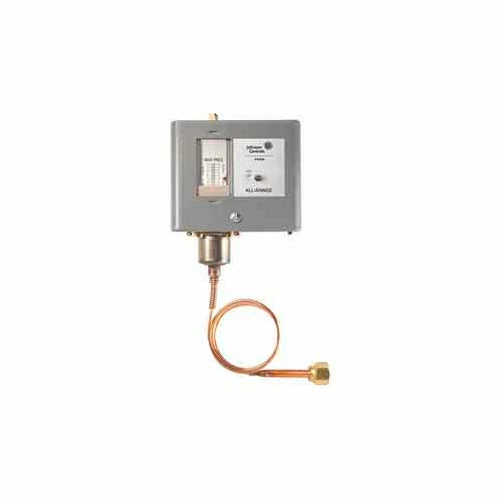

Wholesale ๐ Johnson Controls P70DA-1C All Range Control for High Pressure Applications – Noncorrosive Refrig. ๐
$174.95 Original price was: $174.95.$98.99Current price is: $98.99.
SKU: Johnson Controls WBB476256 Categories: HVAC Controls, Pressure Controls & Switches Tags: 1/4 in. Male Flare Connector, 50 to 500 (345 to 3448), 525 psig (3620 kPa) psi, HVAC & Fans, Johnson Controls, Minimum 60 (414); Maximum 150 (1034), SPST - Open High
- 100% Quality Promise
- Your questions, our prompt answers.
- Peace of Mind with Every Purchase
- Buy quality, buy with us.

The P70 controls for high pressure applications are designed primarily for high pressure cut-out control, head pressure control, and condenser fan cycling control on commercial refrigeration and air conditioning applications. Controls are available in several pressure ranges and are compatible with most common refrigerants. They may also be used on other non-corrosive fluid applications. Ammonia compatible models are also available. Several different electrical ratings and switch configurations are available. The P72 models provide direct control of 208-240 volt single-phase motors up to 3 horsepower, and 208- 220 volt 3-phase motors up to 5 horsepower. It features an all-steel case and cover provides long lasting, rugged protection for internal components. Sight-Set calibrated pressure adjustment displays a visible pressure scale, fully adjustable through the range without removing the cover (on NEMA 1 enclosure models) Manual reset lockout option provides trip free lockout that cannot be overridden or reset until pressure returns to specified level. Variety of available pressure connection styles allows greater flexibility when mounting control and adapting pressure connections to field application requirements.
| PSIG (kPa) Range | 50 to 500 (345 to 3448) |
|---|---|
| Differential PSI (KPA) | Minimum 60 (414); Maximum 150 (1034) |
| Pressure Connector | 1/4 in. Male Flare Connector |
| Max Operating Pressure | 525 psig (3620 kPa) psi |
| Switch Action | SPST – Open High |
| Brand | Johnson Controls |
| Warranty | 1 yr |
