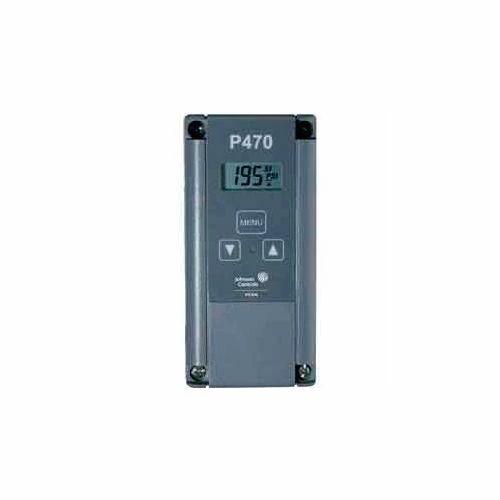

Best Pirce 🔥 Johnson Controls P470EB-1C Digital Electronic; Line Voltage Electronic Pressure Control W/Display 💯

The P470 Electronic Pressure Control with Display is a single-stage, On/Off, electronic pressure control with an SPDT (Single-Pole, Double-Throw) output relay. The control may be field set to operate in one of three pressure ranges (0 to 100 psi, 0 to 500 psi, or 50 to 750 psi), as either an open-high or open-low control. The P470 control features a large LCD that displays the sensed pressure and other system-status indicators, as well as the adjustable setpoints in the programming mode. The P470 control has a lockable,3-button touchpad for adjusting setpoints, and a front-panel LED (Light-Emitting Diode) that indicates the output relay status. The P470 control uses a P499 Electronic Pressure Transducer to generate a pressure signal and a WHA-PKD3 Wiring Harness, which eliminates many of the constraints of capillary-tube control applications.

Features:

• easy-to-read Liquid Crystal Display (LCD) clearly displays the sensed pressure (and other control information), and in many situations pressure may be monitored without applying gauges to the controlled equipment
• three field-selectable pressure ranges between 0-750 psi provide the flexibility to cover most Heating, Ventilating, Air Conditioning, and Refrigeration (HVAC/R) pressure applications
• 24 VAC, and 120 or 208/240 VAC models increase application options, with two controls that cover most common voltages
• lockable, 3-button, front-panel touchpad deters tampering and over adjustment of control settings by unauthorized personnel
• built-in, adjustable, anti-short cycle time-delay reduces compressor short cycling and nuisance lockouts, which can extend compressor life
• economical, versatile transducer and wiring harness eliminate many of the constraints of capillary control applications and allow up to a 100 ft (30.5 m) cable between control and transducer
• up to four P470 controls may be used withone P499 transducer
