Wholesale π€© Johnson Controls Electric Non-spring Return Actuator – M9106-AGA-2N02 π
$136.95 Original price was: $136.95.$96.99Current price is: $96.99.
SKU: Johnson Controls WBB476288 Categories: HVAC Controls, Zoning Control Systems Tags: 32 to 125 °F, 90 sec timing at 60 hz, AC 24 V 50/60 Hz, Floating, HVAC & Fans, Johnson Controls
- 100% Quality Promise
- Your questions, our prompt answers.
- Peace of Mind with Every Purchase
- Buy quality, buy with us.

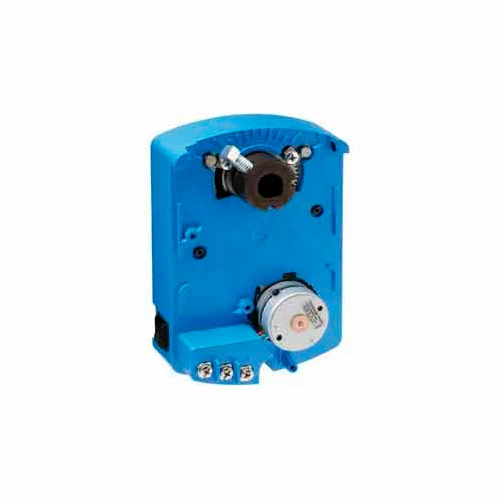

The M9106-AGA-2N0x synchronous motor-driven actuators provide floating (3-wire) control and are easily installed on a Variable Air Volume (VAV) box. They may also be installed on a small or medium-sized damper with a round shaft up to 1/2 inch (13 mm) in diameter or a 3/8 inch (10 mm) square shaft. These compact, non-spring return actuators have a 53 lbΒ·in (6 Nm) running torque in a compact easy-to-install package. The actuators are available with either a nominal 60-second travel time at 60 Hz(72 seconds at 50 Hz) or a nominal 120-second travel time at 60 Hz (144 seconds at 50 Hz) for 90Β° of rotation.
| Torque | 35 lb-in (4 nm) |
|---|---|
| Temperature Control Range | 32 to 125 Β°F |
| Type | Floating |
| TIMING | 90 sec timing at 60 hz |
| Power Requirements | AC 24 V 50/60 Hz |
| Brand | Johnson Controls |
| Warranty | 1 yr |
