Best Pirce 🧨 Johnson Controls Electric Non-spring Return Actuator – M9106-AGA-2N01 🔔

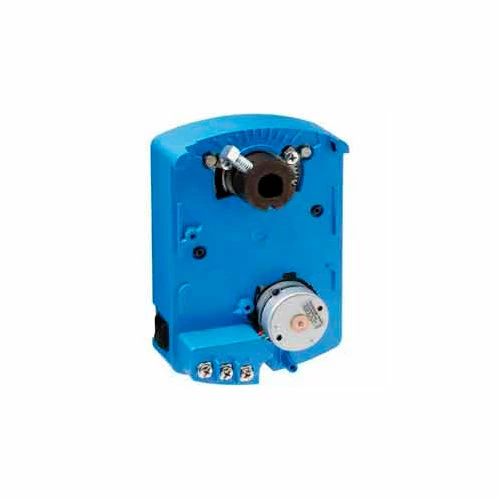

The M9106-AGA-2N0x synchronous motor-driven actuators provide floating (3-wire) control and are easily installed on a Variable Air Volume (VAV) box. They may also be installed on a small or medium-sized damper with a round shaft up to 1/2 inch (13 mm) in diameter or a 3/8 inch (10 mm) square shaft. These compact, non-spring return actuators have a 53 lb·in (6 Nm) running torque in a compact easy-to-install package. The actuators are available with either a nominal 60-second travel time at 60 Hz(72 seconds at 50 Hz) or a nominal 120-second travel time at 60 Hz (144 seconds at 50 Hz) for 90° of rotation.
