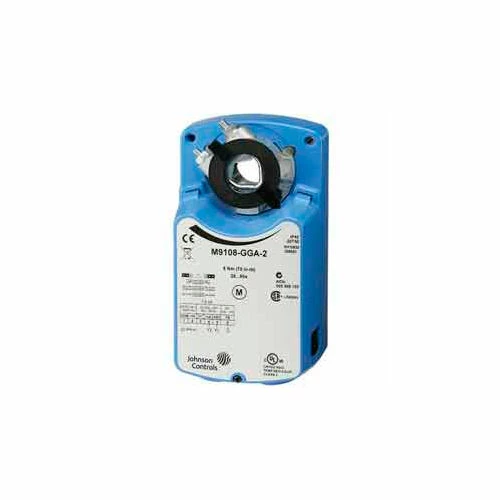

Budget ❤️ Johnson Controls Damper Actuator – M9108-GGA-2 ✨

Features:

• Simple direct coupling reduces installation and commissioning time while improving reliability by eliminating damper linkages
• Robust 70 lb-in (8 Nm) torque rating
• Rotation range 0 to 90° in 5° increments, mechanically limited to 93°
• Fits 3/8 to 3/4 (10 to 20 mm) round shaft, 3/8 to 5/8 (10 to 16 mm) square shaft; 1 (25.4 mm) diameter jackshaft with M9000-154 adapter
• On-off, floating and proportional control inputs meet the needs of most applications
• Output position feedback provides simple closed-loop control with accurate position sensing
• Electronic stall detection ensures higher reliability by deactivating the actuator motor when a stall condition is detected
• Jumper selectable DC 0(2).10 V or DC 0(4).20 mA, proportional control
• Zero and span adjustment (HGx models)allows sequential operation of dampers from a single input signal of DC 0(2).10 V, DC 0(4).20 V or DC 0(4).20 mA
• Jumper-selectable rotation direction and manual gear release simplify installation, setup, and field adjustments
• 2-SPDT optional auxiliary switches
• 1/2 NPT threaded housing provides easy connection for electrical fittings
• Manual gear release simplifies damper / valve setup and commissioning
• -4 to 122°F (-20 to 50°C) ambient temperature range
• Rated for 60,000 full stroke cycles
• UL Listed, CSA Certified, CE Mark
