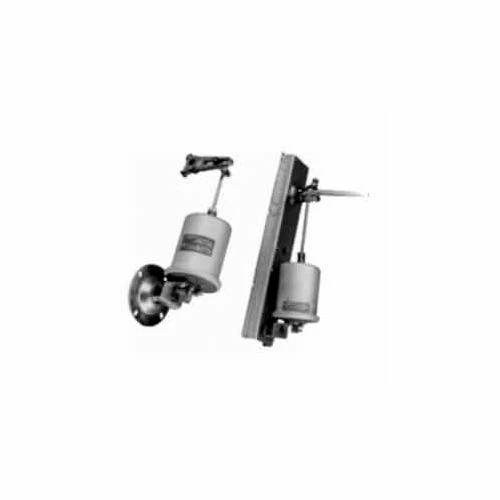

Coupon ✔️ Johnson Controls D-3062-3 Pneumatic Piston Damper Actuator 😍

The D-3062 Pneumatic Actuator is a multipurpose positioning device used to accurately position small dampers primarily on Variable Air Volume (VAV), terminal units and small ventilating dampers in response to output signals of a pneumatic controller or electro-pneumatic transducer. The actuator is also recommended for use on other air flow control dampers, in interior locations, with a up to a maximum area of 4 square feet for proportional volume control and 6.25 square feet for two position actuation provided that the torque requirements are compatible with the specific application. The D-3062 is UL component recognized for use on UL Classified 555/555S smoke and combination fire/smoke dampers, which have been tested and approved to a degradation temperature of 250°F (121°C).
