  • Hot Sale โŒ› J&D Manufacturing Thermostat, Single Stage, 115/230V, 50/60Hz, With Cordset ๐Ÿ˜€ -HVAC Controls Shop JDM VC012 C
  • Flash Sale ๐ŸŽ‰ Line Voltage Thermostat Heat Only For Infrared Heater, 4-5/8'L โœ”๏ธ -HVAC Controls Shop CBU 548400
Sale!
Budget ๐Ÿ‘ Honeywell Prestige IAQ Kit With Redlink™ Wireless Outdoor Sensor YTHX9421R5101WW White ๐Ÿ˜

Budget ๐Ÿ‘ Honeywell Prestige IAQ Kit With Redlink™ Wireless Outdoor Sensor YTHX9421R5101WW White ๐Ÿ˜

$565.00 Original price was: $565.00.$91.99Current price is: $91.99.

Buy Now
SKU: Honeywell WBB921327 Categories: HVAC Controls, Thermostats, Thermostats Tags: 32 to 120 °F, 3H / 2C Conventional or 4H / 2C Heat Pump System, Auto/On/Circ/Follow Schedule, Automatic / Manual, Honeywell, HVAC & Fans, R, C Then Redlink To Equipment Interface Module, YTHX9421R5101WW
  • 100% Quality Promise
  • Your questions, our prompt answers.
  • Peace of Mind with Every Purchase
  • Buy quality, buy with us.
Browse
  • HVAC Controls
    • Building Controllers
    • Fan Controls
    • Pressure Controls & Switches
    • Sensors
    • Thermostats
      • AC & Refrigeration Thermostats
      • Temperature Controllers
      • Thermocouples & Thermopiles
      • Thermostat Accessories
      • Thermostats
      • Water Heater Thermostats
    • Variable Speed Controllers
    • Water Valves
    • Zoning Control Systems
  • Uncategorized
  • Description
  • Additional information
  • Reviews (0)

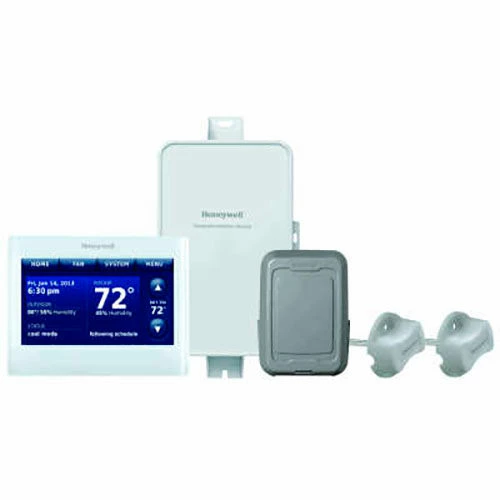

Honeywell Prestige 2-Wire IAQ Kit With Redlinkโ„ข and Wireless Outdoor Sensor YTHX9421R5101WW – 3H / 2C Conventional or 4H / 2C Heat Pump

The Prestigeยฎ IAQ thermostat is a 2 wire high definition color touch screen thermostat, 7 day programmable and selectable for residential or light commercial use. Controls up to 4-stages of heat and 2-stages of cool in a heat pump system and up to 3-stages of heat and 2-stages of cool in a conventional system. Three sets of Universal IAQ contacts to control humidification, dehumidification, and ventilation. Four sensor inputs for wired sensors or dry contact devices. Works with the Equipment Interface Module and RedLINKโ„ข accessories including the RedLINKโ„ข Internet Gateway, Portable Comfort Control, Wireless Outdoor Sensor and Wireless Indoor Sensor.

Features:

  • Control heating, cooling and IAQ equipment with only 2 wires at the thermostat. Heating, cooling and IAQ equipment wires to the Equipment Interface Module.
  • Smart Schedule – programs in seconds for any lifestyle.
  • Patented interview based programming and installer setup.
  • RedLINKโ„ข wireless communication.
  • Increase profit per job by including RedLINKโ„ข accessories that provide comfort and convenience. RedLINKโ„ข accessories include the RedLINKโ„ข Internet Gateway, Portable Comfort Control (PCC), Wireless Outdoor Sensor, Wireless Indoor Sensor, Wireless Entry/Exit Remote, Wireless Vent and Filter Boost Remote, TrueSTEAMโ„ข humidifier with Wireless Adapter and TrueZONEยฎ zoning panel with Wireless Adapter.
  • Selectable for residential and light commercial applications. Meets commercial code and is title 24 compliant.
  • Light commercial – commercial language (occupied and unoccupied), schedule holidays and custom events, remote setback, economizer and time of day.
  • Delta T Alerts and Diagnostics informs customers when their system is not performing as expected with instructions to contact the dealer. Provides a sense of security and greater comfort while generating repeat business.
  • All Prestigeยฎ IAQ kits come standard with a return and discharge air temperature sensor to measure Delta T.
  • Alerts and User Interactions Log – Keeps a searchable history of alerts and setting changes to the thermostat to determine if there is a system malfunction or if the issue was caused by user error. Saves time in troubleshooting and points the technician in the right direction.
  • Performance Logs – Keeps a history of heating and cooling performance. The performance log includes Minimum and Maximum Delta T, Minimum and Maximum Discharge Temperature, Minimum and Maximum Return Temperature, Minimum and Maximum Indoor Temperature/Humidity, Minimum and Maximum Outdoor Temperature/Humidity and Run Time. Quickly determine if the system is performing as expected and reduces service time on the job.
  • Customizable Service Reminders allow dealers to remind their customers when its time to call for service, when their warranty is expiring and to provide customized alerts.
  • USB port for transferring Installer Setup, Customizable Reminders, Custom Events and Holidays to multiple thermostats.
  • USB port for adding the dealer’s full color business logo on the screen.
  • 3 assignable outputs to control humidification, dehumidification, ventilation and a stage of heating or cooling.
  • 4 assignable inputs on the Equipment Interface Module can be used with wired outdoor, indoor or discharge sensors, occupancy sensor for remote setback and dry contact devices to trip pre-packaged or custom alerts such as a full
Depth

7/8 in

Switch Positions (System)

Heat/Off/Cool/Auto/Em.Heat

Description

EIM Touchscreen Smart Thermostat, Outdoor Sensor and 2 Duct Sensors

Features

Tri-Lingual Display (Selectable For English, French Or Spanish)

Settings per Week

7

Voltage

30 / 24 / 20 / 18 V

Includes

EIM, Smart Thermostat and Sensors

Settings Per Day

4

Hazmat Information

Un 3091 Lithium Metal Batteries Packed In/With Equipment

Hertz

50 / 60 Hz

Color Family

White

Stages

3H / 2C Conv or 4H / 2C Heat Pump

Temperature Control Range

40 to 90 (Heat) / 50 to 99 (Cool) ยฐF

Height

3-1/2 in

Brand

Honeywell

Programmable

7 Day

Operating Humidity Range

5 to 90 (non condensing)

Temperature Operating Range

32 to 120 ยฐF

Manufacturers Part Number

YTHX9421R5101WW

For Use With

3H / 2C Conventional or 4H / 2C Heat Pump System

Changeover Type

Automatic / Manual

Electrical Connections

R, C Then Redlink To Equipment Interface Module

Switch Positions (Fan)

Auto/On/Circ/Follow Schedule

Width

4-1/2 in

Warranty

1 yr
