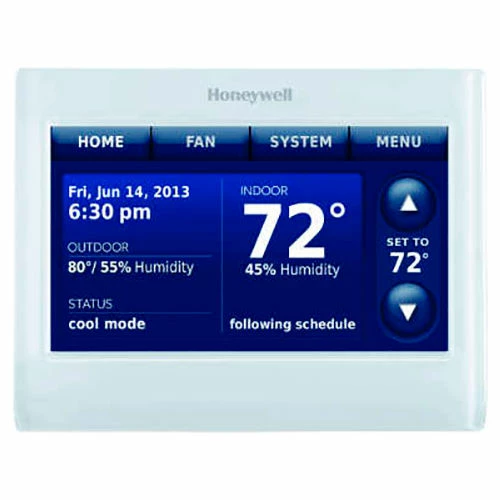

Honeywell Prestige Color Touchscreen Thermostat With Redlink™ THX9421R5021WW – 3H / 2C Conventional or 4H / 2C Heat Pump

The Prestige® IAQ thermostat is a 2 wire high definition color touch screen thermostat, 7 day programmable and selectable for residential or light commercial use. Controls up to 4-stages of heat and 2-stages of cool in a heat pump system and up to 3-stages of heat and 2-stages of cool in a conventional system. Three sets of Universal IAQ contacts to control humidification, dehumidification, and ventilation. Four sensor inputs for wired sensors or dry contact devices. Works with the Equipment Interface Module and RedLINK™ accessories including the RedLINK™ Internet Gateway, Portable Comfort Control, Wireless Outdoor Sensor and Wireless Indoor Sensor.

Features:

  • Control heating, cooling and IAQ equipment with only 2 wires at the thermostat. Heating, cooling and IAQ equipment wires to the Equipment Interface Module.
  • Smart Schedule – programs in seconds for any lifestyle
  • Patented interview based programming and installer setup.
  • RedLINK™ wireless communication.
  • Increase profit per job by including RedLINK™ accessories that provide comfort and convenience. RedLINK™ accessories include the RedLINK™ Internet Gateway, Portable Comfort Control (PCC), Wireless Outdoor Sensor, Wireless Indoor Sensor, Wireless Entry/Exit Remote, Wireless Vent and Filter Boost Remote, TrueSTEAM™ humidifier with Wireless Adapter and TrueZONE® zoning panel with Wireless Adapter.
  • Selectable for residential and light commercial applications. Meets commercial code and is title 24 compliant.
  • Light commercial – commercial language (occupied and unoccupied), schedule holidays and custom events, remote setback, economizer and time of day.
  • Delta T Alerts and Diagnostics informs customers when their system is not performing as expected with instructions to contact the dealer. Provides a sense of security and greater comfort while generating repeat business.
  • All Prestige® IAQ kits come standard with a return and discharge air temperature sensor to measure Delta T.
  • Alerts and User Interactions Log – Keeps a searchable history of alerts and setting changes to the thermostat to determine if there is a system malfunction or if the issue was caused by user error. Saves time in troubleshooting and points the technician in the right direction.
  • Performance Logs – Keeps a history of heating and cooling performance. The performance log includes Minimum and Maximum Delta T, Minimum and Maximum Discharge Temperature, Minimum and Maximum Return Temperature, Minimum and Maximum Indoor Temperature/Humidity, Minimum and Maximum Outdoor Temperature/Humidity and Run Time. Quickly determine if the system is performing as expected and reduces service time on the job.
  • Customizable Service Reminders allow dealers to remind their customers when its time to call for service, when their warranty is expiring and to provide customized alerts.
  • USB port for transferring Installer Setup, Customizable Reminders, Custom Events and Holidays to multiple thermostats.
  • USB port for adding the dealer’s full color business logo on the screen.
  • 3 assignable outputs to control humidification, dehumidification, ventilation and a stage of heating or cooling.
  • 4 assignable inputs on the Equipment Interface Module can be used with wired outdoor, indoor or discharge sensors, occupancy sensor for remote setback and dry contact devices to trip pre-packaged or custom alerts such as a full dr
Depth

7/8 in

Switch Positions (System)

Heat/Off/Cool/Auto/Em.Heat

Features

Tri-Lingual Display (Selectable For English, French Or Spanish)

Description

Color Touchscreen Smart Thermostat

Settings per Week

7

Voltage

30 / 24 / 20 / 18 V

Includes

Smart Thermostat

Settings Per Day

4

Hazmat Information

Un 3091 Lithium Metal Batteries Packed In/With Equipment

Hertz

50 / 60 Hz

Color Family

White

Stages

3H / 2C Conv or 4H / 2C Heat Pump

Temperature Control Range

40 to 90 (Heat) / 50 to 99 (Cool) °F

Height

3-1/2 in

Brand

Honeywell

Programmable

7 Day

Operating Humidity Range

5 to 90 (non condensing)

Temperature Operating Range

32 to 120 °F

Manufacturers Part Number

THX9421R5021WW

For Use With

3H / 2C Conventional or 4H / 2C Heat Pump System

Changeover Type

Automatic / Manual

Electrical Connections

R, C Then Redlink To Equipment Interface Module

Switch Positions (Fan)

Auto/On/Circ/Follow Schedule

Width

4-1/2 in

Warranty

5 yr
